Building Intelligent Agents for Connect-4: First Steps

• Board Games as AI Problems
• Connect-4
• A Connect-4 Agent Based on Tree-Search Techniques
  • Summary of the Upcoming Blog Posts
  • Bit-board Representation
  • Historical and Current Runtime Measurements
• The C++/Python Solver BitBully
• Connect-4 Java Framework
• Counting Positions on the Connect-4 Board with up to 12 Plies
• References

This post is the 1st part of a series of 9 articles:

1. Building Intelligent Agents for Connect-4: First Steps
2. Building Intelligent Agents for Connect-4: Tree Search Algorithms
3. Building Intelligent Agents for Connect-4: Board Representations
4. Building Intelligent Agents for Connect-4: Move Ordering
5. Building Intelligent Agents for Connect-4: Transposition Tables
6. Building Intelligent Agents for Connect-4: Opening Databases
7. Building Intelligent Agents for Connect-4: MTD(f) and Null-Window Search
8. Building Intelligent Agents for Connect-4: Verification and Benchmarking
9. Building Intelligent Agents for Connect-4: Final Considerations

I first worked seriously on Connect-4 in 2012, when I wrote the Java framework CFour for experiments with tree search, temporal-difference learning and Monte Carlo tree search. More recently I returned to the perfect-playing part of that project and wrote BitBully, a C++ solver with Python bindings. The two programs are separated by roughly thirteen years, which makes their different solutions to the same small game rather instructive.

This series documents the tree-search route from a plain Minimax procedure to the complete solver. Connect-4 is a convenient subject for this because its rules fit on a few lines and the game can still be solved to the end, while its game tree is much too large for an unstructured exhaustive search. The old learning agents will return near the end of the series, but the immediate question is how far careful representation, ordering, caching and precomputation can take an exact search.

Board Games as AI Problems

Strategic board games have long been used as comparatively clean AI problems. Their rules and goals are fixed, the state is usually discrete and fully observable, and an experiment can be repeated under exactly the same conditions. At the same time, games such as chess, Go and Connect-4 have state and action spaces large enough that a successful program still needs something more interesting than enumerating moves without a plan. Planning, adversarial search, pattern recognition and learning can therefore be studied without first having to model an uncertain physical environment.

A historical curiosity is the so-called Mechanical Turk, built in 1769 by the Hungarian inventor Wolfgang von Kempelen in the Habsburg Monarchy. Claimed to be an automated chess-playing machine, it captivated audiences across Europe until it was revealed that a human operator was hidden inside. Much later, during World War II, Konrad Zuse described a chess program in his own programming language Plankalkül; the original version checked the legality of moves rather than evaluating them.

Milestones like IBM’s Deep Blue defeating world champion Garry Kasparov in 1997 showcased the potential of highly optimized search, leveraging custom hardware to evaluate about 200 million positions per second. Search and learning have since been combined in many different ways, but they still answer rather different questions.

Tree search and learning approach these games from rather different directions. A search program derives a value from the rules by examining continuations, whereas a reinforcement learning agent estimates values from experience and may share what it has learned across positions through its function approximator. The latter can reduce the need for position-specific search, but it does not remove the choices involved in representing the state or constructing the learner. This series takes the first route and pushes classical tree search until the game is solved perfectly; the final part then explains how the resulting solver can serve as a reference for the learning agents.

Connect-4

Connect-4 is a two-player game, typically played with the colours Yellow and Red, on a vertical grid of seven columns and six rows. The board is empty at the start, and the first player selects one of the seven columns.

Because the discs are dropped from above, a token occupies the lowest empty row of the selected column. A column containing six tokens is no longer a legal choice. The players alternate until one of them forms a connected line of four tokens or the board is full.

The four aligned discs may be:

• horizontal,
• vertical, or
• diagonal in either direction.

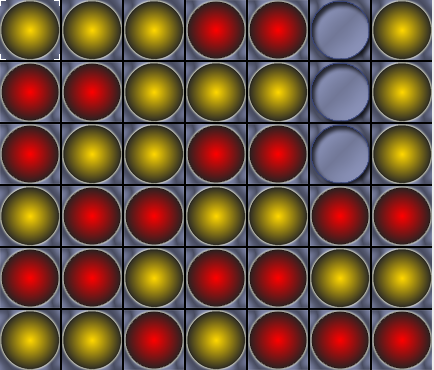

If neither player forms such a line before all 42 cells are filled, the game is drawn. The following position is one example from a game between two of the agents discussed in this series:

Connect-4 has a state-space complexity of approximately \(4.5 \cdot 10^{12}\) distinct positions (Edelkamp & Kissmann, 2008) and a game-tree complexity around \(10^{21}\) (Allis, 1994). These figures rule out a direct enumeration of the game tree and make the representation and pruning methods used by an exact solver consequential.

The first known solution was independently discovered by Allen (Allen, 1989) and Allis (Allis, 1988) in 1988. They weakly solved the game, demonstrating that, assuming perfect play from both players, Yellow can force a win by placing her first token in the centre column.

In 1993, Tromp (Tromp, 1993)(Allis, 1994) went further and strongly solved the game by computing the game-theoretic values of the positions at eight plies. The publicly available machine-learning dataset, donated to UCI in 1995 (Tromp, 1995), is a subset of this work: it contains 67,557 unfinished and unforced positions rather than the complete database.

Note: Forced positions can be omitted from a solver’s book because the search can derive the forced reply directly. For the other omitted class, in which the game still continues, I later added 19,336 positions where Red (the player who has just moved at eight plies) has a threat that Yellow can neutralize.

The complete computation took approximately 40,000 CPU hours (about 4.5 years on a single processor of that period).

The table below shows the legacy counter’s count at each ply and its cumulative sum. With 12 tokens placed, for example, that cumulative count is still about \(2.5 \cdot 10^5\) times smaller than the broader legal-position count for the complete game (the latter is taken from (Edelkamp & Kissmann, 2008)). The two conventions begin to differ at seven plies, as explained immediately below the table.

The table was generated with the legacy Java CountPositionsC4 counter from the appendix. BitBully also has a Python enumeration interface, but, as explained below, it follows a broader convention after six plies.

OEIS A212693 gives the corresponding counts under a broader position convention. The two sequences agree through six plies; from seven plies onwards, the Java counter applies a solver-oriented cutoff. As soon as its ordered move loop encounters an immediate winning move, it returns from the whole node: it neither records the winning child nor explores the siblings which follow it. The current BitBully enumerator and A212693 continue through those branches, which is why they give 54,859 rather than 53,955 positions at seven plies, for example.

A Connect-4 Agent Based on Tree-Search Techniques

Summary of the Upcoming Blog Posts

The 2012 agent began as a simple Minimax search and was gradually extended until it could play perfectly. BitBully retains most of the same ideas, although the representation and the root search driver have changed. Showing both versions is useful here, since it separates the general techniques from choices that only happened to work well in one implementation.

For Connect-4, we benefit from Tromp’s 8-ply opening database, which I further extended with the neutralizable threat positions described above. Additionally, I generated a Huffman-encoded opening database for positions with exactly 12 tokens, storing both the expected outcome and the precise number of moves remaining until the end of the game (under perfect play).

The core Minimax search is enhanced with several techniques, each of which gets its own instalment later in the series:

• Alpha-Beta Pruning: part 2
• Move Ordering, threat detection and symmetry exploitation: part 4
• Zobrist Hashing, two-stage transposition tables and enhanced transposition cutoffs (ETC): part 5
• Opening databases and their Huffman encoding: part 6
• MTD(f) and null-window search, the drivers that sit on top of alpha-beta: part 7
• Verification and benchmarking, including independent checks and paired measurements: part 8

Bit-board Representation

Both agents use bitboards as their main board representation. Conceptually, two sets of 42 bits identify the cells occupied by the two players, although the C++ implementation stores the occupied cells and the active player’s cells instead of one board per colour. The advantage is not that every operation automatically becomes faster, but that the important ones can be expressed through a small number of whole-word shifts and masks. Part 3 works through both layouts, including the guard bits deliberately left unused by the modern C++ engine.

Historical and Current Runtime Measurements

The historical Java agent solved the empty board on a Pentium-4 in under four minutes, without an opening book and with its default transposition tables of roughly 25 MB. In the later paired benchmark, BitBully required a mean of 197.5 seconds on a Fujitsu LIFEBOOK N532 from 2012, again without an opening book, while the reference solver required 386.3 seconds under the same test setup. These figures come from different programs and machines, so they are context rather than a direct generational comparison; the full methodology and the less favourable benchmark rows are given in part 8.

• Python/C++
• Java

• The C++/Python Solver BitBully

  BitBully is the more recent, perfect-playing implementation. Its C++ core contains the bitboard, threat-based move ordering, direct-mapped transposition table and the MTD(f) and null-window drivers described in this series. The high-level Python wrapper adds a convenient board interface and loads the distance-annotated 12-ply book by default, while still allowing the book to be disabled for a search-only solve. The source and package are available on GitHub, PyPI and in the API documentation; there is also a short project page.

• Connect-4 Java Framework

  The earlier Java repository is broader than the solver alone. In addition to AlphaBetaAgent, it contains the graphical application and the temporal-difference and Monte Carlo tree-search agents for which the framework was originally useful. Its search code is considerably longer and less convenient to reuse than BitBully’s, but it preserves the experiments and source-generation utilities from 2012 and is therefore the better source for the historical parts of this series.

Counting Positions on the Connect-4 Board with up to 12 Plies

• Python
• Java

• from bitbully import bitbully_core as bbc

  b = bbc.Board()  # empty board
  board_list_3ply = b.allPositions(3, True)  # All positions with exactly 3 tokens
  len(board_list_3ply)  # should be 238 according to https://oeis.org/A212693


•
  package miscellaneous;

  import java.util.Arrays;
  import java.util.HashSet;
  import c4.ConnectFour;

  /**
   * * Always do 3 runs for counting the positions. First, count all positions
   * with a yellow stone in the left-bottom-corner, then with a red stone, and
   * last run when left-bottom-corner is empty. This is done, because the Hashset
   * can be reset after each run, and doesn't need that much memory.
   *
   * @author Markus Thill
   *
   */
  public class CountPositionsC4 extends ConnectFour {
  	private int maxDepth = 6;
  	private boolean countAll = false;
  	private long count = 0;
  	HashSet<LongArr> hs = new HashSet<LongArr>(16777216);

  	private static final long MASK = 0x20000000000L;
  	int run = 0;

  	private void tree(int depth, int player) {
  		if (depth == maxDepth || countAll) {

  			boolean putElement = false;
  			switch (run) {
  			case 0: // yellow stone in bottom-left corner
  				putElement = (fieldP1 & MASK) == MASK;
  				break;
  			case 1: // red stone in bottom-left corner
  				putElement = (fieldP2 & MASK) == MASK;
  				break;
  			case 2: // no stone in bottom-left corner
  				putElement = ((fieldP1 | fieldP2) & MASK) == 0x0L;
  				break;

  			}

  			if (putElement) {
  				LongArr key = new LongArr(fieldP1, fieldP2);
  				if (hs.add(key)) {
  					count++;
  					if ((count & 0xFFFFL) == 0xFFFFL) {
  						System.out.println("Count until now: " + count);
  						System.gc();
  					}
  				}
  			}
  			if (depth == maxDepth)
  				return;
  		}

  		int moves[] = generateMoves(player, true);
  		for (int i = 0; moves[i] != -1; i++) {
  			if (canWin(moves[i]))
  				return;
  			putPiece(player, moves[i]);
  			tree(depth + 1, player == PLAYER1 ? PLAYER2 : PLAYER1);
  			removePiece(player, moves[i]);
  		}
  	}

  	/**
  	 * @param toPly
  	 *            number of plys, for which number positions are calculated
  	 * @param countAll
  	 *            count all positions, not only leaf-nodes
  	 */
  	public void countPositions(int toPly, boolean countAll) {
  		resetBoard();
  		hs.clear();
  		maxDepth = toPly;
  		count = 0;
  		this.countAll = countAll;

  		for (run = 0; run < 3; run++) {
  			resetBoard();
  			hs.clear();
  			maxDepth = toPly;
  			tree(0, PLAYER1);
  		}

  		if (!countAll)
  			System.out.println("Number of different positions for exactly "
  					+ maxDepth + " stones: " + count + "");

  		else
  			System.out.println("Number of different positions with 0 to "
  					+ maxDepth + " stones: " + count + "");
  	}

  	/**
  	 * @param plyRange
  	 *            number of plys (range), for which number positions are
  	 *            calculated
  	 * @param countAll
  	 *            count all positions, not only leaf-nodes
  	 */
  	public void countPositions(int[] plyRange, boolean countAll) {
  		for (int i = plyRange[0]; i <= plyRange[1]; i++)
  			countPositions(i, countAll);
  	}

  	private class LongArr {
  		private long arr[];

  		LongArr(long val1, long val2) {
  			arr = new long[] { val1, val2 };
  		}

  		public int hashCode() {
  			return Arrays.hashCode(arr);
  		}

  		public boolean equals(Object obj) {
  			LongArr o = (LongArr) obj;
  			return Arrays.equals(arr, o.arr);
  		}
  	}

  	public static void main(String[] args) {
  		CountPositionsC4 cp = new CountPositionsC4();
  		cp.countPositions(0, false);
  		// cp.countPositions(new int[]{0,9},false);
  	}
  }
