In the course of this series the alpha-beta search has reached an enormous scope. Every post so far has added a technique which is individually plausible and collectively rather worrying: precomputed masks, machine-generated branch trees, a move generator which deliberately omits moves, a table which overwrites its own entries, a search which returns bounds instead of values, and depth-gated heuristics which behave one way above ply 20 and differently below it.

Any one of these can be subtly wrong in a way which only shows up as a wrong game-theoretic value deep in a rare position. This post therefore deals with the two questions which follow from this, namely how one can gather convincing evidence that the program is correct, and how one can show that a change has actually made it faster.

Both questions are harder than they look, and in my experience the answers are the most transferable material of the whole series, since they have very little to do with Connect-4 itself.

Limits of Direct Test Cases

The obvious approach of writing down a number of positions together with their expected values is incomplete here, and for three reasons.

The first is that the coverage of such tests is limited. Many of the methods used apply only to specific situations during the search and are therefore situational by construction. Enhanced transposition cutoffs only fire on odd plies below depth 22, the mirror lookup only runs while more than 20 moves remain, and the double-threat shortcut only triggers when two of one’s own threats happen to be stacked on top of each other. A handful of hand-picked positions will exercise none of these paths, and a bug in any of them corrupts a small and rather unpredictable slice of the search space.

The second reason is that independent oracles are scarce. For most software a result can be checked by hand, but the game-theoretic value of an arbitrary Connect-4 position with ten tokens is not something which can be verified by inspection. Tromp’s eight-ply book supplies one useful exception later in this post, but it covers only a particular slice of the state space.

The third reason is the one which bites hardest, namely that faster is not the same as better. A change which demonstrably reduces the node count can still be slower, because avoiding the saved nodes costs more than visiting them would have. Furthermore, a change which helps enormously on one class of positions can hurt on another, so that a single benchmark position tells us essentially nothing. As I noted back in 2012:

Changes to the source code can often have a positive effect on runtime performance in many situations, but not in others. Therefore, it is often not possible to make a statement about whether a modification actually causes a speed-up, even if significant node savings can be observed.

Four Practical Checks

Making the Program disagree with itself

Part 7 left us with three drivers, namely mtdf, negamax and null_window, all of which sit on top of the same recursive search. They probe with completely different sequences of alpha-beta windows, which means that they visit different nodes, take different cutoffs and populate the transposition table differently. Nevertheless they have to return the same number.

This is a useful consistency check, since the three exploration orders exercise the shared machinery differently. It is not an independent oracle, however, and a deterministic bug in that machinery can still make all three drivers return the same wrong answer.

Exploiting a Symmetry of the Game

A position and its mirror image have the same value. This makes symmetry a useful invariant, even though BitBully also exploits it in its transposition lookups: solving both orientations from freshly cleared tables can still expose asymmetric board operations or lookup handling.

agent.reset_transposition_table()
score = agent.mtdf(board)
agent.reset_transposition_table()
mirrored_score = agent.mtdf(board.mirror())
assert score == mirrored_score

This is essentially property-based testing, and the general recipe is worth stating explicitly: one looks for a transformation of the input under which the output has to remain invariant, and then applies it to a large number of random inputs. It is not necessary to know the correct answer, only that two computations have to produce the same one.

Checking the Units and not only the Value

The score convention of part 7 packs an outcome and a distance into a single integer, and score_to_moves_left unpacks it again. The result has stronger sanity constraints than merely fitting onto the board. A positive score means that the player to move wins after an odd number of plies, a negative score means a loss after an even number, and a draw fills the remaining cells. A parity slip in the XOR described there could sail past a simple range check, but it fails this invariant immediately.

Comparing against an External Oracle

The three checks described above share one weakness, namely that they all compare the program against itself. A symmetric, parity-preserving bug in a shared function such as Board::winningPositions could make all three drivers return the same wrong value while still passing the mirror and score-unit checks.

The most direct way to address this is to compare against an independently produced answer. John Tromp computed an 8-ply opening database in 1993 (Tromp, 1993)(Allis, 1994), and its public subset was donated in 1995 (Tromp, 1995), long before BitBully. Those entries are therefore particularly useful for comparison. The packaged 8-ply book used here, however, also contains 19,336 positions analyzed by an earlier version of my own alpha-beta agent, as described in part 6. It is therefore only partly independent: it is a useful regression oracle, but comparisons against the added entries cannot serve as independent validation. The procedure is to take a random position with eight tokens, to solve it with the opening book explicitly disabled so that the search actually does the work, and to compare the result against the book:

agent = bb.BitBully()
agent.reset_book()          # do not consult the thing you are checking against
db = bbd.BitBullyDatabases("8-ply")

searched  = agent.mtdf(board)
from_book = db.get_book_value(to_row_major(board))
assert sign(searched) == sign(from_book)

The call to reset_book() is the essential part of this exercise, since with the book loaded the search would simply answer from the book and the test would compare the database against itself.

Results of the four Checks

A Paired Benchmarking Method

With these correctness checks in place, we can turn to the second question, namely whether a version B is actually faster than a version A.

Solve times in Connect-4 are rather unpleasant data. They span more than four orders of magnitude over the course of the game and vary strongly even within a single ply count, since some positions resolve within microseconds while others are several orders of magnitude more expensive. The resulting distribution has a long right tail; in the table below the standard deviations are consistently larger than the means, which illustrates this quite well.

This makes several obvious analyses fragile. A single outlier can move an unpaired mean considerably, a paired t-test would require the distribution of the paired differences to be approximately normal, and running each solver on different positions adds variance which can swamp the effect one is trying to measure.

Four design decisions address this. The first is to pair the samples, that is, to run both solvers on the identical position and to compare within the pair. The difficulty of a position is by far the largest source of variance, and pairing controls that common input effect so that the analysis compares two numbers measured on the same input. The second is to control the state by resetting the transposition table before every single solve, since otherwise the second solver inherits a table which the first one has already warmed up and consequently looks artificially good. The third is to alternate the measurement order so that one driver does not systematically benefit from always running first or second. The fourth is to gate the whole comparison on correctness: both solvers have to return the same value, and the run aborts if they do not, since a faster wrong answer is not a result. This sounds obvious, but it is exactly the check which catches supposed optimizations that quietly break a cutoff condition.

On top of this, a statistical test is needed which does not require normally distributed differences. The Wilcoxon signed-rank test ranks the paired differences by magnitude and asks whether the positive and negative ranks are balanced. It is designed for paired data and bounds the influence of the largest observations through ranking. Interpreting it as a test of a single location shift still assumes that the distribution of paired differences is reasonably symmetric, so it is not assumption-free.

• \(H_0\): the paired timing differences are centred on zero.
• \(H_1\): the paired timing differences favour MTD(f).
• The \(p\)-value is the probability, under \(H_0\), of obtaining a test statistic at least this extreme. Small \(p\) means the advantage is consistent, not that it is large.

Applying that machinery to MTD(f) versus plain wide-window negamax:

The ratios of the mean times range from 1.13 to 1.62, while the paired rank test finds a consistent shift at every ply. These are related but different summaries: the ratio of means describes total average workload and is especially sensitive to expensive positions, whereas the Wilcoxon test ranks within-position differences. Note again how the standard deviations dwarf the means, which illustrates the heavy tail mentioned above.

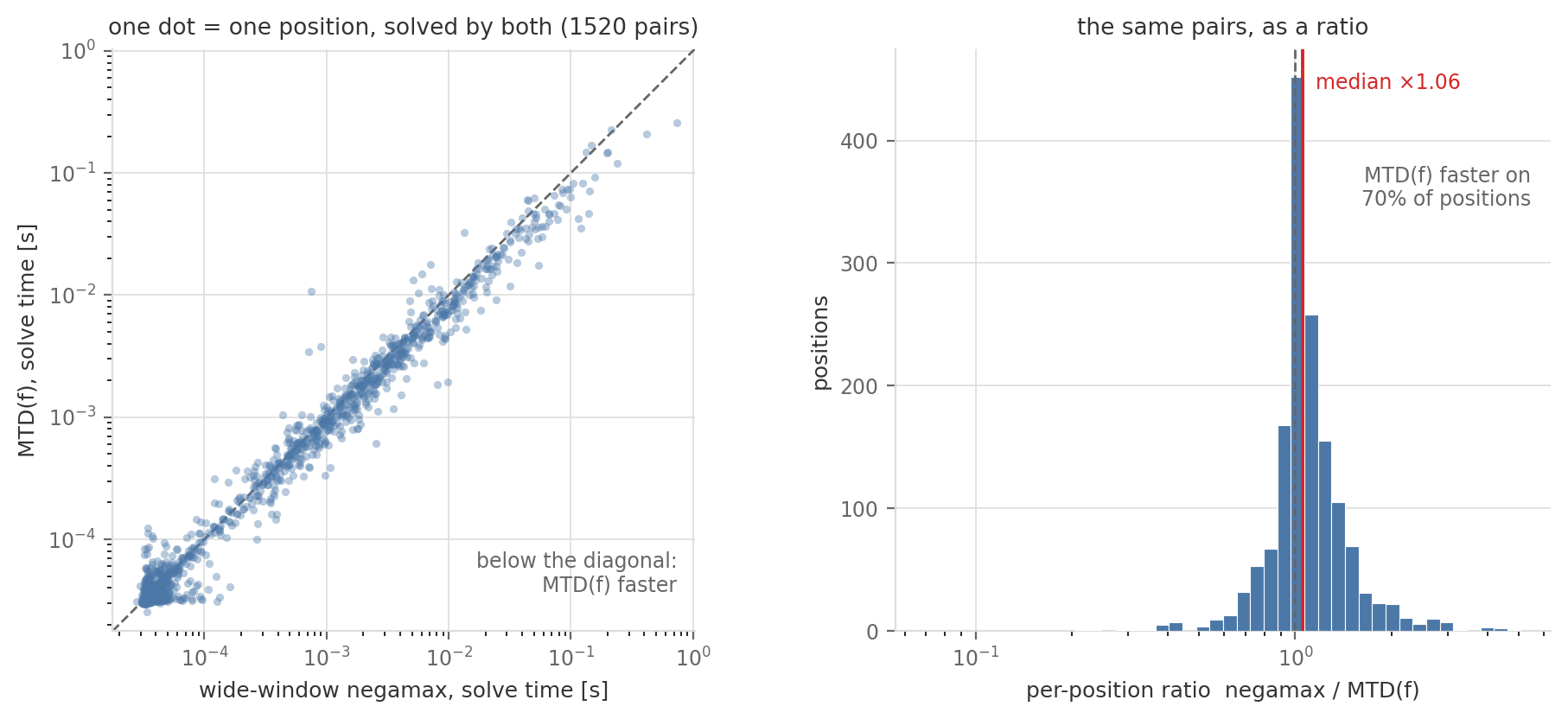

All of these arguments are easier to believe when the raw pairs are actually looked at, so the following figure draws every one of the 1520 paired measurements behind the table:

One caveat applies to every table of this kind: with a sufficiently large number of repeats, even a very small consistent difference can become statistically significant. A very small \(p\)-value therefore provides evidence against a centred difference under the stated assumptions; it does not say that the effect is large. The speed-up column should be read for the size of the effect and the \(p\)-value column for the consistency of the paired differences, and one should never be read without the other.

Comparison against a Reference Solver

The same basic paired design was used to compare BitBully against Pascal Pons’ solver, which is a well-known and genuinely strong reference implementation. The following numbers originate from the BitBully repository rather than from the harness used for this post, since the baseline is a separate C++ program. It uses the same core paired design: identical positions, opening books disabled for both solvers, transposition tables reset, correctness asserted, and a paired Wilcoxon test. The pinned benchmark driver always times BitBully first and the reference solver second, so the counterbalanced order is an additional safeguard of the new MTD(f)-versus-negamax experiment above rather than a feature of the historical comparison.

The results show three distinct regimes, and the last one is the most interesting.

From the empty board up to about six tokens we are dealing with the hardest positions of the game, where the branching factor is maximal and the solver has to explore a large fraction of the tree. On the empty board itself BitBully requires just under 200 seconds against the 386 seconds of the baseline, which is very nearly a factor of two, and at four and six tokens factors of 1.4 to 1.5 remain. This is the regime in which move ordering, pruning and the search drivers all pay off at the same time.

Between roughly eight and twelve tokens a consistent advantage of about 1.2 to 1.6 remains, which is still statistically significant, but the absolute saving collapses from minutes to milliseconds. Improving from 0.8 s to 0.5 s matters considerably less than shaving three minutes off an empty-board solve, even though the ratio is similar.

Beyond about 14 tokens the measured advantage disappears, and at 16 tokens BitBully is nominally even slower. Both solvers finish these sampled positions within milliseconds, so fixed overhead and timing noise matter increasingly. This experiment therefore provides no evidence of a BitBully advantage in those rows, and in my opinion the honest thing is to publish them anyway.

Two caveats which the BitBully README states should be repeated here, since a benchmark without its caveats is closer to marketing than to measurement. The benchmark report records a \(2^{20}\)-entry BitBully table against the baseline’s default \(2^{24}\) entries, which favours the baseline. The pinned BitBully source now defaults to \(2^{22}\) entries, so \(2^{20}\) describes that historical benchmark build rather than the current default. The comparison also measures wall-clock solve time only, rather than node counts or memory consumption.

For some historical context: searching from the empty board took the 2012 Java agent under four minutes on a Pentium-4 computer to find out that the move into the middle column is the best possible one, using its default transposition tables of roughly 25 MB and no opening book at all. The more recent C++ benchmark reports just under 200 seconds on a Fujitsu LIFEBOOK N532 from 2012. Since these are different programs measured on different machines, they provide historical context rather than a controlled speed-up factor.

Some general Conclusions

Almost none of the above is really specific to Connect-4, and the following points seem to me to be the ones worth carrying over to other projects:

• One should test against something which one has not written oneself. Self-consistency checks cannot find a bug in an assumption which everything shares, and a single independently produced answer is worth a great many internal assertions.
• Where the expected output cannot be computed, it is often still possible to name a transformation which the output has to survive, and to test that instead.
• If the dominant source of variance is the input rather than the treatment, then comparing on identical inputs controls much of this variance at little cost.
• The statistics have to match the data. With heavy-tailed timings, paired rank-based tests can be more informative than an unpaired comparison of means; their assumptions and estimand should nevertheless be stated.
• The rows in which one loses should be published as well. In my view the rows from 14 tokens onwards are the most credible part of the benchmark table, precisely because they show no advantage at all.

Summary

The solver is now complete, and there is substantially better evidence for its correctness. One post remains, which collects the techniques that did not fit anywhere else, gives an accounting of what each of them actually bought, and finally turns to the question which this whole series has been circling around, namely that of a perfect player which has learned nothing at all.

Source Code

Pinned to the commit this post was written against:

• BitBully — main.cpp (benchmark driver), notebooks/c4_analyze_runtimes.ipynb
• Baseline — PascalPons/connect4. BitBully was inspired by the solvers of Pascal Pons and John Tromp; the oracle used above is Tromp’s 8-ply database, redistributed in bitbully-databases.

The verification and paired MTD(f) benchmark used for this post are implemented locally in tools/connect4/verify.py and tools/connect4/bench_paired.py.

BitBully in general: GitHub · PyPI · Docs · project page

References

Several paragraphs of this post are adapted from my Master’s thesis, a translation of my Bachelor thesis, and some earlier project work.
