Building Intelligent Agents for Connect-4: Move Ordering
This post is the 4th part of a series of 9 articles:
- Building Intelligent Agents for Connect-4: First Steps
- Building Intelligent Agents for Connect-4: Tree Search Algorithms
- Building Intelligent Agents for Connect-4: Board Representations
- Building Intelligent Agents for Connect-4: Move Ordering
- Building Intelligent Agents for Connect-4: Transposition Tables
- Building Intelligent Agents for Connect-4: Opening Databases
- Building Intelligent Agents for Connect-4: MTD(f) and Null-Window Search
- Building Intelligent Agents for Connect-4: Verification and Benchmarking
- Building Intelligent Agents for Connect-4: Final Considerations
The previous post was concerned with making each individual operation as fast as possible. This one deals with the considerably more rewarding question of how to perform far fewer of them.
In order to achieve the highest possible efficiency of the alpha-beta algorithm, a good move ordering is necessary. In contrast to the Minimax algorithm, which has to examine all nodes of the search tree, the alpha-beta algorithm can prune large parts of the tree if the best moves are tried out early on. The reason for this is that both players always try to maximize their own result and to minimize the result of the opponent. The closer the current results come to the game-theoretic values, the more subtrees can be cut off, since they no longer contribute to the determination of the exact values.
In my experience this is where the largest improvements in a Connect-4 solver are to be found. Before making technical optimizations to the program, before adding hash tables and before computing a database, one should first try to improve the move ordering, since it offers much more potential.
The Effect of Move Ordering
Consider a game tree with branching factor \(b\) which is searched to depth \(d\). Minimax visits \(b^d\) leaf nodes, and alpha-beta with the worst possible move ordering visits the same number. With a perfect ordering, in which the best move is always tried first, only
\[b^{\lceil d/2 \rceil} + b^{\lfloor d/2 \rfloor} - 1 \approx 2\,b^{d/2}\]leaf nodes have to be examined, which is essentially the square root of the original effort. For Connect-4 with \(b \approx 7\), a search to depth 20 would thus drop from \(7^{20} \approx 8 \cdot 10^{16}\) to roughly \(2 \cdot 7^{10} \approx 5.6 \cdot 10^{8}\) nodes. No amount of instruction-level tuning can compete with a change of eight orders of magnitude.
The catch, of course, is that knowing the best move is precisely the problem we are trying to solve in the first place. Move ordering is therefore always a heuristic, and it comes with a budget, since time spent on deciding what to search first is time which is not spent on searching.
This budget is not uniform across the tree. Cutoffs near the root remove larger subtrees, and since comparatively few nodes occur at these levels, sophisticated and relatively expensive procedures for move ordering are conceivable there. Deeper in the tree the situation reverses: the nodes are overwhelmingly numerous and each individual cutoff saves very little, so the computing time per node has to be minimized. For this reason both of my agents divide the search into stages. BitBully uses the full threat-counting sort while depth < 20, a lighter findThreats() pass at depths 20 and 21, and the static priority scan alone from depth 22.
Simple Move Ordering
Generally speaking, it can be said that moves in the central columns of the board are usually preferable, and there is a concrete reason for this: a cell in the centre can be part of more potential chains of four than a cell at the edge.

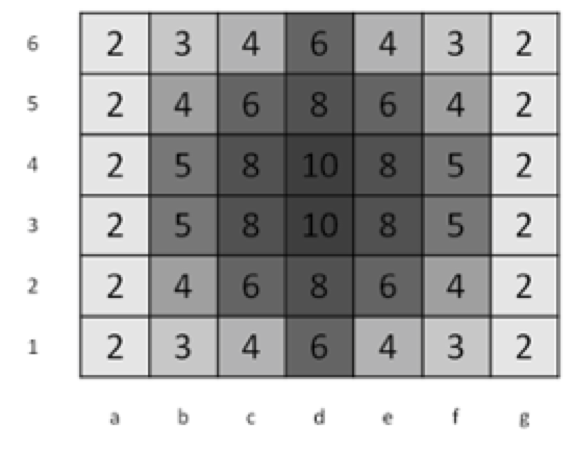

Of the 69 possible chains of four on a Connect-4 board, of which 21 are vertical, 24 horizontal and 24 diagonal, a central cell is part of roughly four times as many as a corner cell. BitBully encodes this observation directly in six constexpr priority classes. Note that these classes refer to cells rather than to columns, so that the middle rows of the middle column receive the highest priority:
static constexpr TBitBoard BB_MOVES_PRIO1 = getMask({29, 30});
static constexpr TBitBoard BB_MOVES_PRIO2 = getMask({31, 21, 20, 28, 38, 39});
static constexpr TBitBoard BB_MOVES_PRIO3 = getMask({40, 32, 22, 19, 27, 37});
static constexpr TBitBoard BB_MOVES_PRIO4 = getMask({47, 48, 11, 12});
// ... and two more, working outward to the corners
Decoding with the layout from the last post (bit = col * 9 + row), BB_MOVES_PRIO1 is \(\{29, 30\}\) = column 3, rows 2 and 3 — dead centre. Picking the next move is then a walk down the priority list, taking the first class that intersects the candidate set:
[[nodiscard]] static TBitBoard nextMove(TBitBoard allMoves) {
for (const auto p : BB_MOVES_PRIO_LIST) {
if (const TBitBoard pvMv = allMoves & p) {
allMoves = pvMv;
break;
}
}
return lsb(allMoves);
}
In the worst case this requires six AND operations, without any sorting and without allocations. Since it does not contain any dynamic elements, it can be implemented very efficiently, and it is therefore the ordering used deep in the tree, where the computing time per node is what matters. To date, no further measures have been successful in improving the second stage of the move ordering, mainly because cutoffs in these levels do not save enough nodes to compensate for the additional effort.
Preferring Moves which generate Threats
Near the root we can afford to look at what a move actually does. Especially in the early and middle phase of a game it is important for the players to build up threats, since if one of the two players succeeds in doing so, the other may eventually be forced to make a move which loses the game. BitBully’s sortMoves therefore scores every candidate by the number of threats the player would have after making it, that is, by the number of still-empty cells which would then complete a chain of four, and feeds these scores into a small priority queue:
MoveList Board::sortMoves(TBitBoard moves) const {
MoveList mvList;
const TBitBoard ownThreats = winningPositions(m_bActivePTokens, false);
while (moves) {
const auto mv = nextMove(moves);
// How many threats (direct and indirect) will I have after this move?
const auto threats =
winningPositions(m_bActivePTokens ^ mv, true) & ~(m_bAllTokens ^ mv);
auto numThreats = static_cast<int>(uint64_t_popcnt(threats));
// Usually avoid moving under your own threat -- the opponent
// just neutralises it on the next ply.
if (ownThreats & (mv << 1)) numThreats--;
mvList.insert(mv, numThreats);
moves ^= mv;
}
return mvList;
}
Two details of this function are worth pausing on. The expression winningPositions(...) & ~(m_bAllTokens ^ mv) counts only threat cells which are still empty. They may be directly playable or still floating above other empty cells; sortMoves() includes both classes. The AND with the complement of the occupancy filters occupied cells out with one further bitwise operation, without an additional loop or allocation.
The second detail is the line if (ownThreats & (mv << 1)) numThreats--. Shifting a move mask up by one bit lands on the cell directly above it, and if one of our own threats sits there, then playing this move would allow the opponent to neutralize the threat on the next ply. Such moves are therefore sorted to the back. A genuine piece of Connect-4 strategy is thus expressed in one shift, one AND and one decrement.
A Priority Queue for seven Elements
The class MoveList is deliberately not a heap. With at most seven moves, the asymptotic advantage of a heap loses against the constant factor of a simple insertion sort:
void insert(const TBitBoard move, const int score) {
int pos = size++;
for (; pos && m_arrayPrioQueue[pos - 1].score >= score; --pos)
m_arrayPrioQueue[pos] = m_arrayPrioQueue[pos - 1];
m_arrayPrioQueue[pos].move = move;
m_arrayPrioQueue[pos].score = score;
}
inline TBitBoard pop() {
return size ? m_arrayPrioQueue[--size].move : UINT64_C(0);
}
This is a fixed seven-element array on the stack without any allocation, and pop() runs in constant time. The >= in the loop condition preserves the insertion order among equal scores, so that the centre-first ordering from the previous section survives as a tie-break inside the threat-based ordering. Two heuristics are thus combined in a single data structure.
Note that CFour also contains a class called MoveList, but it is a rather different thing: a move history used for undoing moves, not a priority queue. The 2012 agent sorts its moves inside AlphaBetaAgent itself.
Odd and Even Threats
We now come to the part which is genuinely specific to Connect-4, and which in my experience is the reason why a naive agent eventually stops improving.
However, not all threats of a player are equally useful. Since the players alternate and the tokens stack up from the bottom, control of the cells underneath a threat can determine who eventually has to occupy its row. This is a conditional zugzwang argument, not a rule that the first player literally occupies every odd row and the second player every even one.
Victor Allis has elaborated on this topic in detail in his master’s thesis (Allis, 1988). The rules he sets up are so complex and abstract, however, that it is very difficult to transfer them to move ordering directly. Since a move ordering does not have to provide the optimal move sequence in all cases anyway, both engines use rough priorities which cover many common situations. They should be read as heuristics rather than as sufficient conditions for the outcome:
- Moves which add a useful odd-row threat are usually worth examining early.
- The first player benefits particularly from odd threats in the standard parity strategy.
- The second player may also benefit from even threats, provided that the supporting cells and the opponent’s odd threats do not reverse the move order.
In a bit board these priorities amount to a single AND against a constant. CFour uses the row parity masks in its evaluation function. BitBully also provides findOddThreats(), shown below, although the current negamax() does not call it:
-
Board::TBitBoard Board::findOddThreats(TBitBoard moves) { constexpr auto ODD_ROWS = getRowMask(2) | getRowMask(4); auto threats = winningPositions(m_bActivePTokens, true) & ~m_bAllTokens; const auto curNumThreats = uint64_t_popcnt(threats & ODD_ROWS); auto threatMoves = UINT64_C(0); while (moves) { const auto mv = lsb(moves); threats = winningPositions(m_bActivePTokens ^ mv, true) & ~(m_bAllTokens ^ mv); if (uint64_t_popcnt(threats & ODD_ROWS) > curNumThreats) { threatMoves ^= mv; // this move adds a new odd threat } moves ^= mv; } return threatMoves; } -
protected static final long EVENROWS = 0x15555555555L; protected static final long ODDROWS = 0xA28A28A28AL; // From the one-threat case in AlphaBetaAgent.evaluate(): if (threatsP2 != 0) { if ((threatsP2 & EVENROWS) != 0L) return -500; return 0; } if ((threatsP1 & ODDROWS) != 0L) return 500; return 0;
Domain knowledge which would amount to a thicket of nested loops over a two-dimensional array thus becomes a mask and a bit count. In my view this is the actual argument in favour of bit boards: not merely that the individual operations are fast, but that the appropriate abstractions become cheap enough to be used everywhere.
Moves which are never generated
All the techniques described so far reorder the candidate moves. The next one removes some of them entirely.
If the opponent threatens to win immediately, then almost every move loses on the spot. Once an immediate win for the side to move has already been handled, BitBully can filter such losing replies out during move generation. This precondition matters: generateNonLosingMoves() is not a general replacement for checking one’s own winning move. Inside the recursive search it holds because the parent never generates a move which leaves an immediate win unanswered; the root is checked separately.
[[nodiscard]] TBitBoard generateNonLosingMoves() const {
TBitBoard moves = legalMovesMask();
const TBitBoard threats = /* opponent's winning cells */;
if (const TBitBoard directThreats = threats & moves) {
// We cannot neutralise more than one direct threat -- two means we lost.
moves = directThreats & (directThreats - 1) ? UINT64_C(0) : directThreats;
}
// Never place a stone directly underneath an opponent threat.
return moves & ~(threats >> 1);
}
Three bit tricks are combined in these six lines. The expression directThreats & (directThreats - 1) is the classical test for whether more than one bit is set. Under the precondition above, if the opponent has two immediate winning cells, we can block at most one of them, so the position is already lost and the set of moves becomes empty. If there is exactly one direct threat, then moves collapses to precisely that cell, which means that the reply is forced and the branching factor at this node drops from seven to one. Finally, threats >> 1 shifts every threat of the opponent down by one cell, and the AND with the complement removes exactly those moves which would place a token underneath one of the opponent’s winning cells.
An empty result is not an error here. It simply means that every reply loses, so that the caller can return a loss without searching anything at all.
Exact Values without any Search
The same idea can be taken one step further. Some positions are already decided, and this can be proven rather cheaply:
[[nodiscard]] TBitBoard doubleThreat(const TBitBoard moves) const {
const TBitBoard ownThreats = winningPositions(m_bActivePTokens, false);
const TBitBoard otherThreats =
winningPositions(m_bActivePTokens ^ m_bAllTokens, true);
return moves & (ownThreats >> 1) & (ownThreats >> 2) & ~(otherThreats >> 1);
}
The expression (ownThreats >> 1) & (ownThreats >> 2) finds a move which has two of the player’s own threats stacked directly on top of it. If a token is placed there, the opponent has to block the lower threat, which immediately exposes the upper one. This is a forced win, and the exact value follows from the move count alone as (movesLeft - 1) / 2, without expanding a single subtree.
One caveat is worth mentioning, since it cost me some debugging time while writing this post: the double-threat test has to be applied to the non-losing moves, not to all legal moves. A move can create a very attractive double threat and still lose, simply because it allows the opponent to win first. BitBully performs the two steps in the correct order, first calling generateNonLosingMoves() and only then doubleThreat(moves).
The legacy CFour agent has one further reduction. If its explicit symmetry check finds that the position equals its reflection at the middle axis, the move loop examines only the first four columns, since the remaining three lead to mirror images with identical values. The check is not free (it constructs mirrored bit boards), and the pinned BitBully move loop does not apply this particular pruning rule.
Trying the Move Ordering out
The rules described above are easier to follow on a concrete position than in prose, so the following widget applies them live. For every legal move it shows the score which sortMoves() would assign, that is, the number of threats present after the move and after the correction for moving under one’s own threat, together with the centre-first priority class of the target cell. The table is sorted exactly the way MoveList would pop the moves.
The three example buttons show the situations discussed above. In the forced reply position the opponent has exactly one immediate threat, so generateNonLosingMoves() collapses the move set to a single cell and the branching factor at this node drops from seven to one. In the double threat position one move has two of the player’s own winning cells stacked above it, which doubleThreat() recognises without expanding any subtree at all. And in the already lost position the opponent has two immediate threats, only one of which can be blocked, so the move generator returns an empty bit board and the search can report a loss immediately.
It is also worth switching the odd-row highlighting on and off. The dashed cells are rows 3 and 5 counting from the bottom, the rows which are particularly valuable to the first player in the standard parity strategy. The highlighting is a heuristic cue; it does not say who must occupy every such cell in an arbitrary continuation.
Generating the Source Code
The threat detection of the 2012 engine consists of roughly 2000 lines of machine-generated, fully unrolled branch tests, selected by cell and with the masks inlined as hexadecimal literals. For reasons of efficiency and in order to avoid errors, this source code was not written by hand but generated automatically by a second program:
/**
* The method findThreat (the source) was generated with this program,
* because its source-code is very long. It can be chosen if findThreats
* or findOddThreats is generated.
*/
public class GenerateSource extends ConnectFour {
/** All four-rows, with the exception of the vertical ones */
long fourRows[] = { 0x1041040000L, 0x41041000L, /* ... 48 masks ... */ };
public static void main(String[] args) {
new GenerateSource().createMethod(false);
}
}
The same pattern appears several more times in the project, for instance in a small C++ tool which generates the Zobrist key tables of part 5, and in the pipeline which produces the opening books of part 6.
The reasoning behind this is worth making explicit, since it is a genuine engineering decision rather than a hack. Whenever the required code is very long, completely mechanical, and at the same time so performance-critical that loops and table lookups measured too slowly in the target implementation, writing it by hand is both slower and considerably more error-prone than writing the program which writes it. The generator comprises about 200 readable lines, while its output consists of 2000 unreadable ones, and only the former has to be reviewed.
The approach has its price as well, of course. Generated code cannot be edited, only regenerated, and if the generator is lost, the artefact becomes a fossil. It is therefore advisable to keep the generator in the repository, which is the reason why GenerateSource.java is still there some fourteen years later.
Historical Measurements of the Move Ordering
Neither of the two engines contains a switch which would turn its move ordering off, so there is unfortunately no clean ablation which could be run against them, and a reimplementation would only measure the reimplementation. What does exist, however, are the measurements which were taken while the 2012 agent was being developed on a Pentium-4, where each technique was added to a working solver and the effect was recorded:
- Threat-based ordering near the root — preferring moves that create a threat, with the odd/even rules deciding which threats count — halved the average search time. This was the largest improvement recorded in those development notes, and the reason the two-stage structure exists at all.
- The stacked-threat and double-threat shortcuts, which return an exact score instead of expanding a subtree, were worth a further ~20%.
Both numbers originate from the same source and should be read for what they are, namely measurements of one engine on one machine in 2012 rather than universal constants. For absolute claims, the whole-engine benchmarks of part 8 are the ones to rely on, since there BitBully is compared against an independent reference solver on identical positions and with the appropriate statistics.
The durable part is the theoretical argument at the beginning of this post. Under perfect ordering, alpha-beta moves from the \(b^d\) worst case towards the \(b^{d/2}\) best case. The measured heuristic does not automatically attain that bound, but the gap explains why it is worth spending substantial effort on the question of which of seven columns should be searched first.
Summary
Each node is now cheap to process and there are considerably fewer of them. The search, however, still re-derives the same positions over and over again, since Connect-4 reaches identical boards through many different move sequences and none of the techniques described so far notices this.
The next post therefore deals with remembering what has already been computed, and with the somewhat surprising fact that the more recent engine does without the hashing scheme on which the 2012 one was built.
Source Code
Pinned to the commits this post was written against:
- BitBully —
Board.cpp(sortMoves,findThreats,findOddThreats),Board.h(generateNonLosingMoves,doubleThreat,nextMove),MoveList.h - CFour —
GenerateSource.java,NumFourRows.java,AlphaBetaAgent.java
BitBully in general: GitHub · PyPI · Docs · project page
References
- A knowledge-based approach of Connect-4. The game is solved: White winsDepartment of Mathematics and Computer Science, Vrije Universiteit, Amsterdam, The Netherlands, 1988
Several paragraphs of this post are adapted from my Master’s thesis, a translation of my Bachelor thesis, and some earlier project work.
